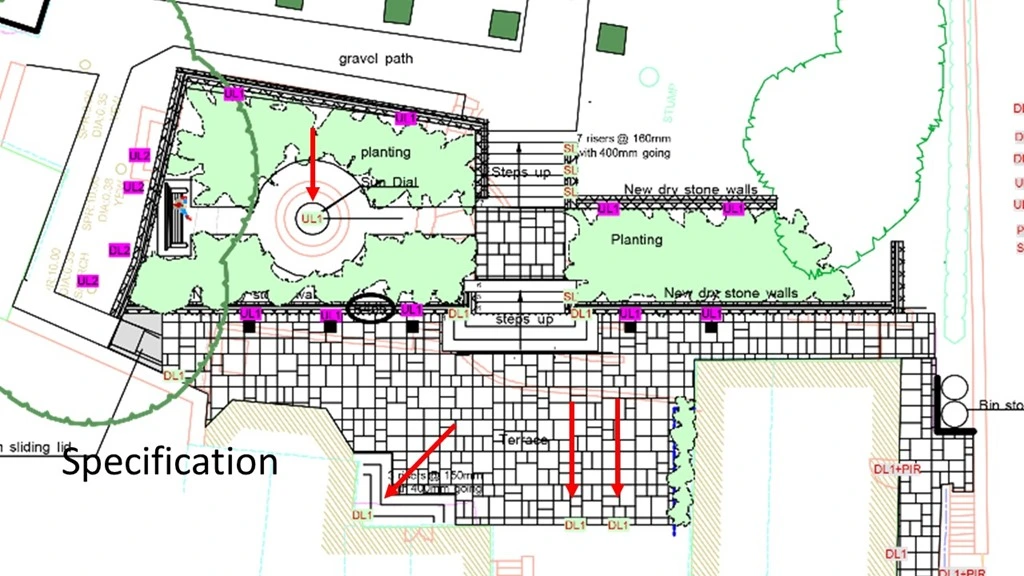

Garden Lighting Plans: A Definitive Guide to Architectural Exterior Design

Garden lighting plans. The transition of a garden from a daylight asset to a nocturnal environment represents a fundamental shift in spatial perception. In the context of high-end landscape architecture, lighting is no longer relegated to the status of a secondary utility or a safety-driven afterthought. Instead, it has evolved into a primary medium through which the character of a property is articulated after sunset. The deliberate application of light allows for the curation of depth, the emphasis of texture, and the establishment of movement, effectively reclaiming the landscape from the erasure of darkness.

Designing these environments requires a synthesis of disparate disciplines, ranging from the physics of optics and electrical engineering to the nuances of horticultural health. One must account for the specific spectral output of diodes, the physical durability of metallurgy in varied soil pH levels, and the human response to glare and contrast. A sophisticated system is not merely about brightness; it is about the management of shadow. It is in the voids, the unlit spaces, where the most effective designs find their rhythm, creating a sense of three-dimensional volume that the flat light of midday often obscures.

As the industry shifts toward integrated systems and highly efficient solid-state lighting, the sheer volume of technical choices can be overwhelming. Determining the most effective path forward requires moving past superficial aesthetics and into the structural and technical foundations of the craft. This analysis serves as an exhaustive reference for the strategic implementation of exterior illumination, examining the mechanisms that define high-performance systems and the frameworks that ensure their longevity in harsh environmental conditions.

Understanding “garden lighting plans.”

The pursuit of professional garden lighting plans is frequently undermined by a reductive view of “plans” as a simple shopping list of fixtures. In a senior editorial context, a plan is a comprehensive strategy that balances three competing priorities: technical performance, human psychology, and environmental integration. A common misunderstanding lies in the belief that hardware selection precedes strategy. In reality, the most resilient designs are those that prioritize the intended visual effect, the “why” before determining the “how” through specific wattages or beam angles.

A significant risk in modern design is oversimplification. Many property owners view lighting as a commodity, resulting in systems that are visually “loud” but functionally incoherent. A high-level plan recognizes that human eyes do not perceive absolute light levels as much as they perceive contrast ratios. If a designer over-illuminates a central focal point, the surrounding areas, even if safely lit, will appear pitch black to the observer as their pupils constrict. Thus, the best plans are often those that utilize lower lumen outputs across a wider array of sources to maintain a balanced visual field.

Furthermore, we must distinguish between “decorative” and “architectural” intent. Decorative lighting seeks to draw attention to the fixture itself, a lantern or an ornate bollard. Architectural lighting, by contrast, seeks to make the light source invisible, focusing the eye entirely on the subject being illuminated. The most sophisticated garden lighting plans often blend these approaches, but the structural integrity of the project relies on the architectural layer. When evaluating a plan, one must look past the finish of the brass and into the quality of the internal driver, the thermal management of the housing, and the precision of the optics.

Historical and Systemic Evolution garden lighting plans

The history of outdoor illumination is a progression from fire to filament, and finally to the semiconductor. Historically, exterior lighting was a luxury of safety. Torches and lanterns were used primarily to ward off predators or facilitate movement through hazardous terrain. During the Victorian era, the introduction of gas lighting allowed for a more permanent nocturnal infrastructure, though it was largely confined to urban public spaces and the entryways of the elite.

The mid-20th century saw the rise of high-voltage (120V) systems in residential landscapes. These were cumbersome and dangerous; they required deep trenching and rigid conduit, and the heat produced by high-wattage incandescent bulbs often damaged the very foliage they sought to highlight. The subsequent development of low-voltage (12V) halogen systems revolutionized the field by making installations safer and more flexible. Halogen provided a warm, high-CRI (Color Rendering Index) light that became the industry benchmark for decades.

However, the current era is defined by the absolute dominance of Light Emitting Diodes (LEDs). This was not merely an incremental improvement in energy efficiency; it was a total paradigm shift. LEDs allowed for the miniaturization of fixtures, the precise control of beam spreads, and the ability to tune color temperatures with surgical accuracy. Today, the conversation has moved beyond the light source itself and into the realm of system intelligence, integrating astronomical timers, zoning, and remote monitoring into the fundamental architecture of the landscape.

Conceptual Frameworks: Mental Models for Design

To master the application of exterior light, one must move beyond the task of “picking lights” and adopt specific mental models that govern the behavior of light in three-dimensional space.

The Theory of Three Layers

Professional designers rarely rely on a single light source to define a space. Instead, they think in layers:

• Ambient: The general “wash” of light that provides basic orientation and safety. This is the foundation that prevents a yard from feeling like a series of disconnected islands of light.

• Task: Specific, high-intensity illumination for activities, such as cooking at an outdoor kitchen, navigating stairs, or reading on a patio.

• Accent: High-contrast light used to create drama, emphasizing a specimen tree, a stone texture, or a water feature.

The Inverse Square Law and Lumen Management

The physics of light dictates that intensity decreases exponentially with distance. In landscape lighting, this is crucial for avoiding glare. The formula $E = I / d^2$ (where $E$ is illuminance, $I$ is intensity, and $d$ is distance) explains why doubling the distance from a fixture requires four times the intensity to achieve the same brightness. Rather than using “brute force” high-wattage bulbs, the best plans place lower-output fixtures closer to the subject, which minimizes “light spill” and preserves the dark sky.

The Interior-to-Exterior Sightline Model

A garden should not be designed solely for someone standing in the middle of the lawn. Most property owners experience their landscape from the inside looking out. This model requires the designer to account for reflections on glass. If the outdoor light levels are lower than the indoor light levels, the window becomes a mirror. By carefully balancing the intensities, the glass “disappears,” effectively extending the interior living space into the garden.

Taxonomy of Illumination: Categories and Trade-offs

When selecting the hardware for professional plans, it is helpful to categorize them by their optical performance rather than their appearance.

1. Directional “Bullet” Spots

These are the workhorses of the industry. They offer interchangeable lenses that allow for narrow beam spreads (15°) for tall, thin pillars or wide spreads (60°) for sprawling oak canopies.

• Trade-off: High versatility but high risk of glare if the fixture is not properly shielded with a shroud or “snoot.”

2. Well and In-Grade Lights

Recessed into the ground or hardscape, these provide upward illumination without the physical presence of a fixture above ground.

• Trade-off: Excellent for modern, minimalist aesthetics, but susceptible to moisture ingress and debris coverage (leaves/mulch), which can cause overheating.

3. Path and Area Lights

Mushroom-style or bollard fixtures that direct light downward onto walkways.

• Trade-off: Crucial for safety, yet often overused. Too many path lights can create a “runway” effect that distracts from the broader landscape.

4. Hardscape and Linear LEDs

Discreet strips or puck lights integrated into the undersides of walls, steps, or handrails.

• Trade-off: Permanent and “invisible” during the day, but extremely difficult to repair or replace once the stone or concrete is set.

Strategy Comparison Table

Category	Primary Benefit	Durability	Complexity of Installation	Entertaining Value
Up-lighting	Architectural Drama	High	Moderate	High
Moonlighting	Natural Ambiance	Moderate	High	Very High
Path Lighting	Safety/Navigation	Moderate	Low	Moderate
Grazing	Texture Emphasis	High	Moderate	High

Real-World Application Scenarios

The efficacy of a plan is tested by how it adapts to specific site constraints. The following scenarios demonstrate the decision logic required for complex environments.

Scenario A: The Mature Wooded Lot

In a property dominated by large, established trees, the challenge is navigating root systems and avoiding “trunk glare.”

• Decision Logic: Instead of trenching deeply for ground lights, the plan utilizes “Moonlighting.” Fixtures are installed high in the canopy, pointing down through the branches.

• Failure Mode: Placing high-wattage spots at the base of the trunk. This creates a “hot spot” at the bottom and leaves the upper canopy in darkness.

Scenario B: The Modern Waterfront Estate

Waterfront properties face extreme salinity and high wind loads, along with strict light-pollution regulations.

• Decision Logic: Use 316-grade stainless steel or solid cast brass with no powder coating. All fixtures must be “full cut-off” to prevent light from reflecting off the water surface.

• Failure Mode: Aluminum fixtures. Even high-quality powder-coated aluminum will pit and corrode within 24 months in a salt-air environment.

Scenario C: The Urban Courtyard

Small spaces with high verticality require precision to avoid light spilling into neighboring windows.

• Decision Logic: Integration of recessed step lights and “grazing” techniques on masonry walls. Grazing involves placing a light source very close to a textured surface to emphasize the shadows in the stone.

Economic Dynamics: Investment and Lifecycle Costs

The financial planning for professional garden lighting plans involves a shift from “initial purchase price” to “total cost of ownership” (TCO). A significant portion of the cost is hidden in energy, maintenance, and the “replacement labor” cost.

Direct vs. Indirect Costs

• Direct: Fixtures, transformers, wire, and labor.

• Indirect: Energy consumption, voltage drop mitigation, and the cost of system re-aiming as the garden grows.

• The “Penny Wise” Trap: Choosing aluminum fixtures over brass or copper. While aluminum is cheaper initially, it will pit and corrode within 3–5 years in most climates, necessitating a complete system replacement.

Investment Range Table (Per 10 Fixtures)

Tier	Component Material	Control System	Typical Warranty	Est. 10-Year TCO
Standard	Aluminum / Composite	Mechanical Timer	3–5 Years	$4,500 – $6,000
Premium	Cast Brass / Copper	Astronomical Digital	10 Years – Lifetime	$8,000 – $12,000
Architectural	Stainless / Bronze	Zoned / Dimming / App	Lifetime	$15,000 – $30,000

Tools, Strategies, and Support Systems

The performance of an outdoor lighting system is limited by the infrastructure that supports it. A plan is only as resilient as its weakest connection.

1. Multi-Tap Transformers: Essential for managing “voltage drop.” Because low-voltage electricity loses pressure as it travels down a wire, a light 150 feet away might receive only 10 volts instead of 12. A multi-tap transformer has various lugs (12V, 13V, 14V, 15V) to allow the installer to “boost” the voltage to distant lines.

2. Astronomical Clocks: Unlike simple photocells, these use the property’s latitude and longitude to calculate exactly when the sun sets and rises every day, adjusting automatically for seasonal shifts.

3. Zoning and Dimming: Modern controllers allow for the creation of “scenes.” One might have a “Security” scene where all lights are at 100%, and a “Late Night” scene where the architectural lights turn off, but the path lights remain at 20% for safety.

4. IP-Rated Connectivity: High-quality systems use gel-filled connectors and heat-shrink tubing to prevent “wicking”—the process where moisture travels through the wire into the heart of the LED.

5. CRI (Color Rendering Index): For entertaining, CRI is critical. A CRI of 90 or higher ensures that food looks appetizing and guests’ skin tones look natural.

6. Kelvin Management: Consistency is key. Mixing 2700K (warm) and 4000K (cool) lights in the same visual field creates a jarring, “industrial” feel.

Risk Landscape and Failure Modes

Outdoor lighting operates in an environment that is actively trying to destroy it. Moisture, soil acidity, and temperature fluctuations are constant threats.

Taxonomy of Failure

• Moisture Wicking: If a wire nut is not properly gel-filled, moisture can travel inside the copper wire jacket through capillary action, eventually reaching the driver of the fixture and shorting it out.

• Vapor Lock: In poorly designed sealed fixtures, heat buildup creates a vacuum that “sucks” moisture in through the seals as the fixture cools. High-end fixtures use Gore-Tex vents to equalize pressure.

• Voltage Stress: If a system is designed without measuring the voltage at each fixture, LEDs can be over-driven. This reduces their lifespan from 50,000 hours to 5,000 hours.

• Compounding Risks: A loose connection creates heat, which expands the metal, which allows more moisture in, which causes corrosion. This “death spiral” is why professional maintenance is non-negotiable.

Governance, Maintenance, and Long-Term Adaptation

A garden is a living, breathing entity. As the plants grow and the seasons change, the lighting system must be governed accordingly.

The Maintenance Checklist

• Quarterly: Clean the lenses. Mineral deposits from irrigation systems can reduce light output by 50% and cause heat buildup.

• Semi-Annually: Check for “tilted” fixtures. Soil settling and yard maintenance often knock path lights out of alignment.

• Annually: Prune foliage away from fixtures. A fixture that was perfectly placed three years ago may now be buried inside a boxwood hedge.

• Biannually: Re-evaluate the “aim.” As trees grow taller, the fixtures must be moved further back or adjusted to higher angles to maintain the same architectural effect.

Measurement, Tracking, and Evaluation garden lighting plans

How do we quantify the success of garden lighting plans? We use a combination of qualitative and quantitative signals.

• The “Glow” vs. “Source” Test: Walk the property. If you can see the bare bulb (the light source) from any primary seating area, the plan has a glare failure. You should see the effect of the light, not the light itself.

• Foot-candle Measurements: Using a light meter to ensure that pathways have at least 0.5 to 1.0 foot-candles for safety, while accent areas may reach 5.0 to 10.0 for drama.

• Voltage Consistency: Measuring the voltage at the furthest fixture. It should be between 11.5V and 12.5V for a standard 12V system.

• Leading Indicators: Energy draw at the transformer. A sudden spike indicates a potential short; a slow decline indicates failing lamps or excessive lens buildup.

Common Misconceptions and Oversimplifications

• Myth: Solar lights are a viable substitute for wired systems.

  • Correction: Solar lights lack the lumen output for architectural lighting and have a very short lifespan. They are “markers,” not “illuminators.”

• Myth: LED bulbs last forever.

  • Correction: While the diode may last, the electronics in the “driver” or the physical seals of the fixture often fail much sooner.

• Myth: Lighting everything is the goal.

  • Correction: Professional lighting is about the balance of light and dark. Leaving “black holes” in the landscape provides the necessary contrast to make the lit areas stand out.

• Myth: High wattage equals better light.

  • Correction: With modern optics, a 3-watt LED can often provide a more effective architectural highlight than a 50-watt halogen bulb, provided the beam angle is precise.

• Myth: More lights mean more security.

  • Correction: Excessive, high-glare floodlights create deep shadows where intruders can hide. Even low-level illumination is far more effective for security cameras and human eyes.

Ethical and Ecological Considerations

In the pursuit of the perfect nocturnal garden, we must address the “Dark Sky” movement. Over-lighting our properties contributes to light pollution, which disrupts bird migrations and nocturnal insect populations.

The ethical path forward involves “Dark Sky Compliance” using fixtures that are “full cut-off” (meaning no light escapes upward). It also involves the use of warm-spectrum light and timers to ensure the property is only lit when humans are present. A garden can be perfectly illuminated for pleasure while still being respectful of the surrounding ecosystem.

Conclusion: Synthesis and Strategic Judgment

The development of professional garden lighting plans is ultimately a matter of strategic judgment. It is the art of knowing when to speak and when to remain silent, when to bathe a stone wall in light and when to let a quiet corner remain in shadow. A truly definitive lighting plan is built for the “long game.” It prioritizes high-quality materials, accounts for the inevitability of nature’s growth, and utilizes the principles of physics to create a visual environment that is as safe as it is beautiful.

In an age of disposable consumer goods, a well-engineered landscape lighting system stands as a rare example of an asset that can actually improve with age, provided it is governed with care. As the property evolves, the light can be adjusted, the zones can be re-timed, and the nocturnal identity of the site can continue to flourish.
