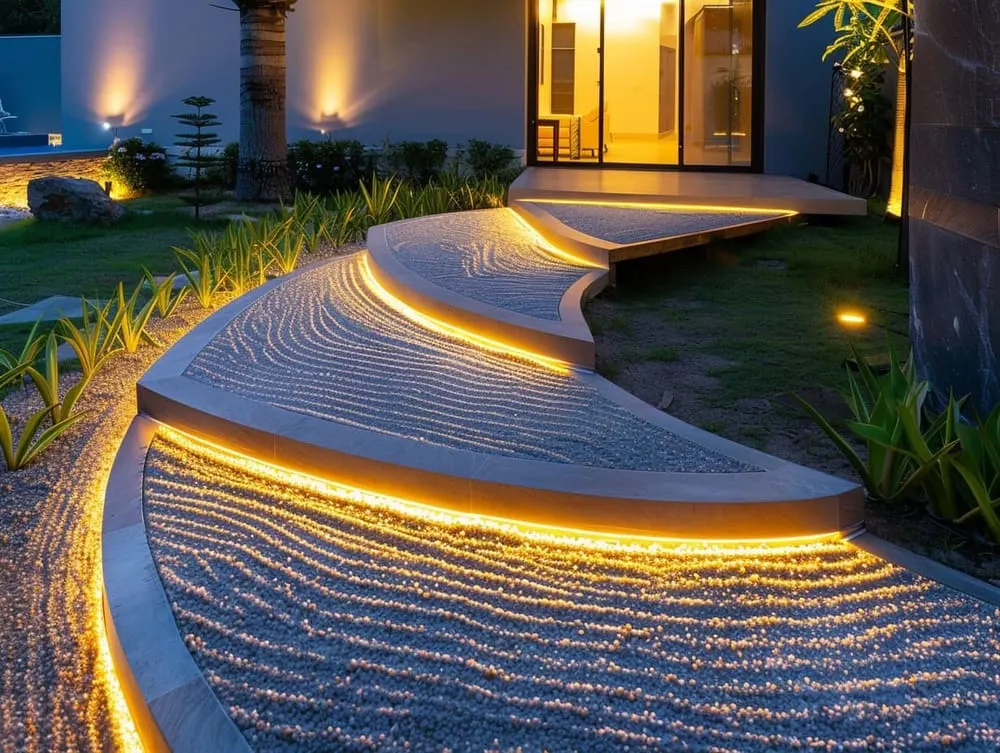

Walkway Lighting Plans: An In-Depth Guide to Architectural Illumination

Walkway lighting plans. Illumination of a pedestrian path is often reduced to a utilitarian exercise in safety, yet its true complexity lies at the intersection of optics, human psychology, and structural endurance. A walkway is not merely a conduit between two points; it is a transitional space where the human eye must constantly adapt to varying light levels, textures, and environmental hazards. Designing for this space requires a rigorous understanding of how light interacts with vertical and horizontal planes, and how those interactions influence the perceived security and physical stability of the traveler.

The shift toward high-performance solid-state lighting has disrupted traditional landscape design philosophies. We are no longer constrained by the bulky footprints of incandescent or high-pressure sodium lamps, which often dictated a “brute force” approach to brightness. Instead, modern engineering allows for precision-driven strategies where photons are directed with surgical accuracy. This level of control, however, introduces its own set of risks, specifically regarding glare, contrast ratios, and the biological impact of blue light on nocturnal ecosystems.

A robust approach to path illumination demands more than choosing fixtures from a catalog. It involves a systemic evaluation of the site’s topography, the reflectance of paving materials, and the long-term degradation of components under environmental stress. Whether the project is a high-traffic municipal promenade or a private corporate campus, the underlying principles of photon management remain the same: visibility without discomfort, and orientation without intrusion.

Walkway Lighting Plans: Understanding the Multi-Dimensional Perspective

To effectively develop walkway lighting plans, one must first decouple “brightness” from “visibility.” A frequent misunderstanding in the field is that higher foot-candle measurements at ground level equate to a better plan. In reality, excessive brightness often creates deep, impenetrable shadows nearby due to the eye’s inability to adjust to high-contrast environments. This “white-hole” effect can actually decrease safety by obscuring hazards just outside the immediate pool of light.

A sophisticated plan treats the walkway as a three-dimensional volume rather than a two-dimensional surface. This means accounting for vertical foot-candles, the light that hits a person’s face or a vertical obstacle, which is critical for facial recognition and spatial orientation. Furthermore, the risk of oversimplification often leads to a “one-size-fits-all” spacing model. If a plan fails to account for the “Z-axis” (elevation changes, stairs, and slopes), it ignores the areas where the human gait is most vulnerable to misstep.

Finally, the concept of “light trespass” must be integrated into the core design. A walkway plan that illuminates the path but also floods a neighboring residential window or disrupts local wildlife is a failure of governance and engineering. True mastery in this discipline involves shaping the light so that the “cutoff” is sharp, ensuring that every watt of energy is converted into a purposeful photon hitting the intended target.

Contextual Background: The Systemic Evolution of Pathfinding

Historically, path lighting was a reactive measure. In 19th-century urban environments, gas lamps were spaced primarily to prevent crime, with little regard for the quality of light or the ergonomics of the walk. The introduction of the incandescent bulb allowed for more frequent spacing, but it wasn’t until the mid-20th century, with the advent of High-Pressure Sodium (HPS) and Metal Halide (MH) lamps, that wide-area pedestrian lighting became standardized. These systems, however, were plagued by poor color rendering and significant energy waste.

The contemporary era is defined by the LED revolution, which decoupled the light source from the traditional “bulb and reflector” housing. We now use Total Internal Reflection (TIR) lenses that allow for beam shapes such as Type II or Type IV distributions specifically engineered for long, narrow stretches. This evolution has shifted the focus from “maintaining the lamp” to “managing the system,” where the thermal environment of the housing and the integrity of the electronic driver are the primary determinants of longevity.

Conceptual Frameworks and Mental Models

Professionals use several mental models to navigate the complexity of walkway lighting plans.

1. The Layering Model (Task, Ambient, Accent)

Light should never serve a single purpose. Task lighting ensures the walker sees the ground; ambient lighting provides enough environmental context to prevent a “tunnel vision” feeling; accent lighting highlights landmarks to assist in wayfinding. A plan that only provides “Task” lighting feels industrial and cold, while one that is only “Accent” is dangerous.

2. The Photopic/Scotopic Transition

Human vision shifts from photopic (daylight) to scotopic (night) through a mesopic range. Because LEDs can be tuned to specific spectral power distributions, we can optimize walkway plans for mesopic vision, where the eye is more sensitive to blue-green wavelengths. This allows for lower absolute light levels that feel “brighter” to the human observer.

3. The Peripheral Awareness Framework

Safety is not just about seeing the path; it is about seeing what is adjacent to the path. By illuminating a “buffer zone” 3–5 feet off the main walkway, a plan reduces the “startle response” and allows for better peripheral detection of potential hazards or intruders.

Taxonomy of Walkway Lighting Systems

The selection of hardware determines the ultimate resilience of the plan. Each category involves significant trade-offs between aesthetic impact and vandal resistance.

Category	Primary Function	Placement Logic	Resilience Level
Bollard Lights	Direct path marking	8-15ft intervals	Moderate (Vulnerable to mowers)
Post-Top Luminaires	Area & path blend	10-15ft height	High (Out of reach)
Recessed Steplights	Elevation changes	Integrated into risers	High (vandal-proof)
In-Grade Uplights	Accent/Wayfinding	Flush with paving	Low (Drainage dependent)
Path-Side Miniatures	Low-level residential	4-6ft intervals	Low (Fragile)

Decision Logic for Systems

Choosing between a bollard and a post-top system depends on the “Scale of Architecture.” In an open park, a post-top provides a sense of security through wide coverage. In an intimate garden or a narrow corridor between buildings, bollards keep the light below eye level, preserving the view of the surrounding architecture and sky.

Detailed Real-World Scenarios

The High-Traffic Urban Transit Walkway

In this environment, the constraint is durability and facial recognition. The plan must utilize high-CRI (Color Rendering Index) sources at a mounting height of 10–12 feet to ensure that security cameras and pedestrians can clearly identify individuals. Failure here often results from “shadow pockets” created by urban furniture (benches, trash cans).

The Coastal Boarding Ramp

Salt spray and high humidity make corrosion the primary failure mode. A walkway plan here must specify 316-grade stainless steel or copper-free aluminum. The “second-order effect” is the impact on sea turtle nesting; therefore, the plan must use “amber” wavelengths (long-wave light) that do not disorient hatchlings.

The Corporate Campus “Green-Way”

The focus is on “Smart Adaptation.” The walkway lighting plans incorporate motion sensors and DALI (Digital Addressable Lighting Interface) controls. The lights remain at 10% dimness to save energy, but ramp up to 100% as a pedestrian approaches. The failure mode is often “sensor lag,” where the light turns on after the person has already passed.

Planning, Cost, and Resource Dynamics

The initial capital expenditure (CapEx) of a walkway lighting project is often dwarfed by the twenty-year operational expenditure (OpEx).

Cost Variable	Estimated Range (per linear ft)	Impact on TCO
Trenching & Conduit	$20 – $50	One-time; High labor
Fixture Quality	$150 – $1,200 (ea)	Affects the replacement cycle
Energy Consumption	Negligible (LED)	Cumulative over decades
Smart Controls	$2,000 – $10,000 (system)	High initial; High ROI

Opportunity Cost: Choosing a cheaper, non-integrated driver system may save 15% upfront, but results in “truck rolls” (labor calls) that cost $200+ per hour when the generic electronics fail after a summer heatwave.

Risk Landscape and Failure Modes

The failure of walkway lighting plans is rarely a “blackout” event. It is more often a compounding degradation:

1. Thermal Runaway: In poorly ventilated bollards, heat builds up, causing the LED phosphors to “brown out,” shifting the light from white to a sickly green or purple.

2. Voltage Drop: In long runs of low-voltage wiring, the fixtures at the end of the line may flicker or produce less light, creating a dangerous lack of uniformity.

3. Lumen Dirt Depreciation (LDD): In-grade lights that are not cleaned regularly lose up to 40% of their output due to a film of dirt and calcium deposits from irrigation.

Governance and Maintenance

A plan is only as good as its fifth-year performance. This requires a “Life-Cycle Governance” approach:

• Quarterly “Walk-Throughs”: Personnel should walk the path in the opposite direction of the primary traffic flow to identify glare issues that may have developed due to settling or shifting of fixtures.

• Annual Optical Cleaning: Wiping down lenses to maintain the design’s photometric intent.

• Review Triggers: Any change in site foliage or new building construction should trigger a re-evaluation of the light levels to ensure the “Conceptual Framework” still holds.

Common Misconceptions and Oversimplifications

• “Solar is Free”: While energy is free, the “battery replacement cycle” is a high cost and environmental hazard. Solar should only be used when trenching is physically impossible.

• “More Light = More Safety”: Studies consistently show that uniformity is more important for safety than absolute brightness.

• “LEDs Don’t Emit Heat”: They do, but they emit it backward into the circuit board rather than forward in the beam.

Conclusion

A walkway lighting plan is an exercise in restraint and precision. It requires the designer to see the night not as a void to be filled with light, but as a canvas where shadows and highlights must be balanced to serve human movement. By prioritizing uniformity over intensity and durability over initial cost, a system becomes a long-term asset that provides safety, enhances architecture, and respects the nocturnal environment.
